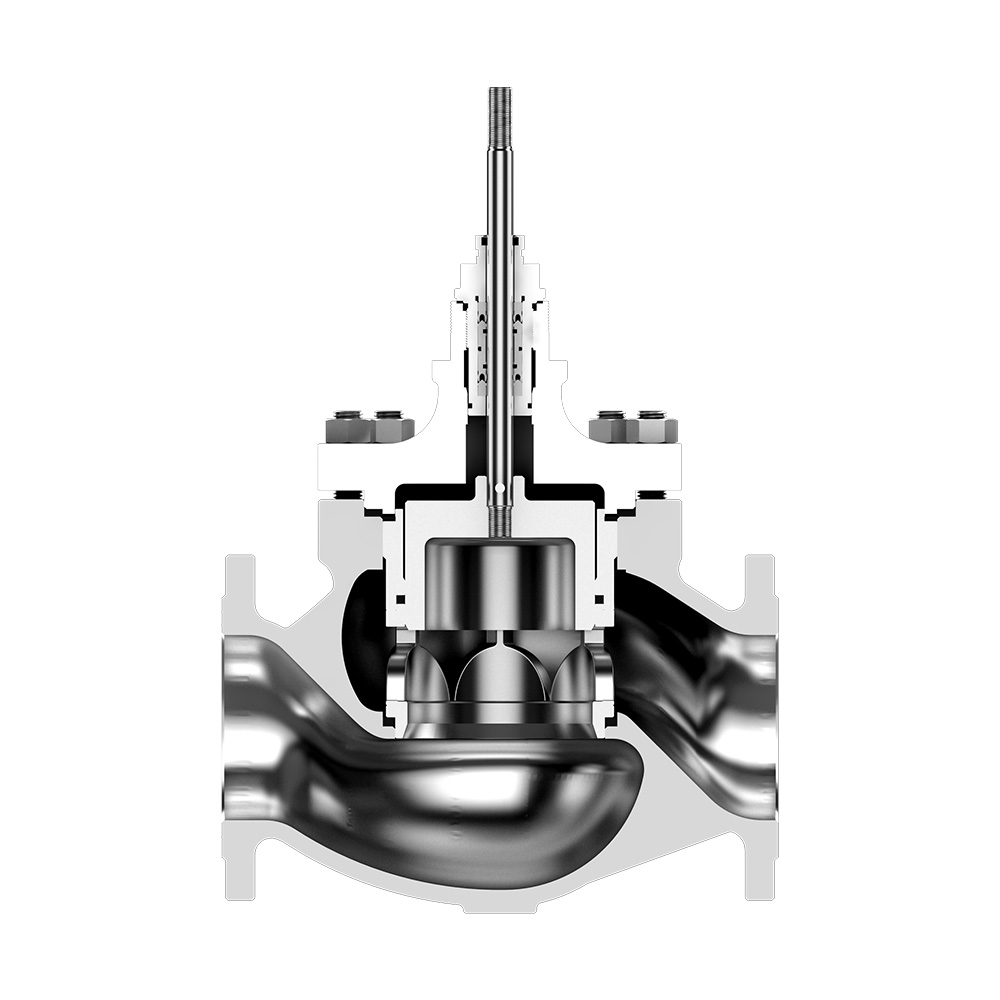

The L-40500 cage-guided pressure balance trim is designed for heavy-load applications. The double seat seal is applicable for low leakage requirements. With a compact structure and S-streamlined fluid channel the valve body is structurally equipped with a guide wing to ensure smooth fluid flow around the cage and has the advantages of small pressure drop loss large flow rate wide adjustable range and high accuracy of flow characteristics.
The trim features a pressure balance structure and can control high-pressure differential conditions with a small actuator thrust. It is widely used for fluid control in pipelines that require good dynamic stability high and low temperatures and high pressure. The cage-guided structure with a large guiding area excellent stability and compact structure allows for quick online replacement of internal parts high maintenance efficiency and saves manpower and time. It has a large flow coefficient and adjustable ratio. The balanced trim design ensures the minimum required actuator thrust and saves costs.
Control valve parameter description:
| Trim: | Double Seat Structure、Cage Guided Balance Trim、Partial or Integrated Cage |
| Body: | Straight Through、Angle、 Z type |
| Bonnet: | Standard、Steam、Cryogenic |
| Temperature Range: | -196°C~538°C |
| Stem Sealing: | Standard、Graphite、Bellows |
| Leakage: | CLASS IV (Standard, Metal Seat) |
| Flow Characteristic: | Equal%、Linear |
| Pipe Line Connection: | Flange、Welding |
| Range Ability: | 50:1 |
