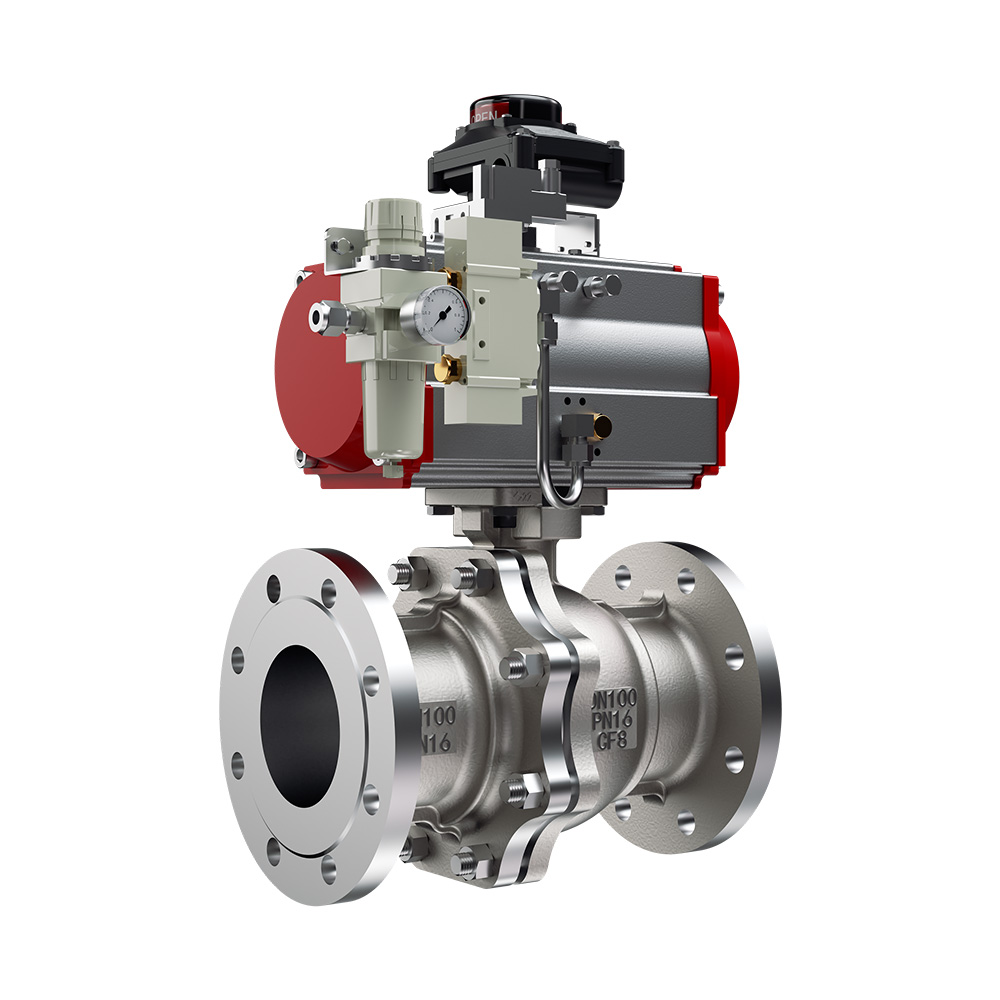

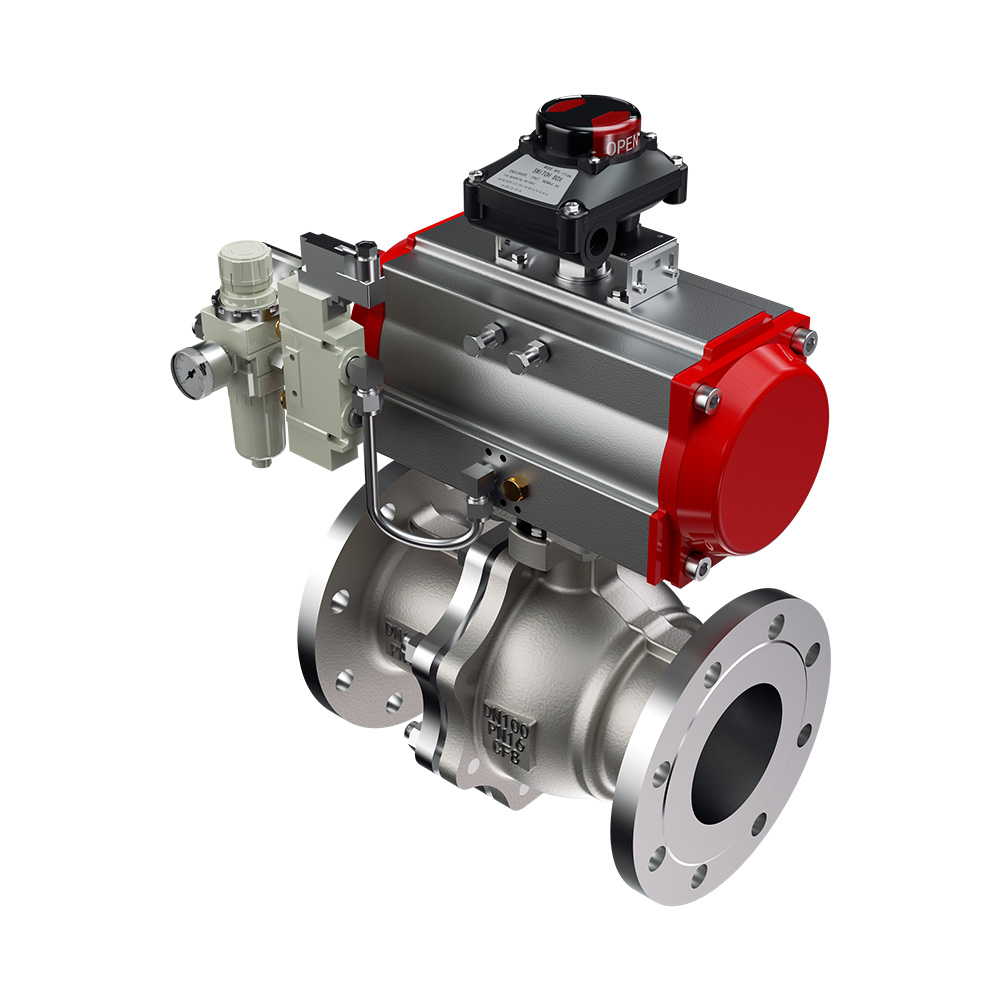

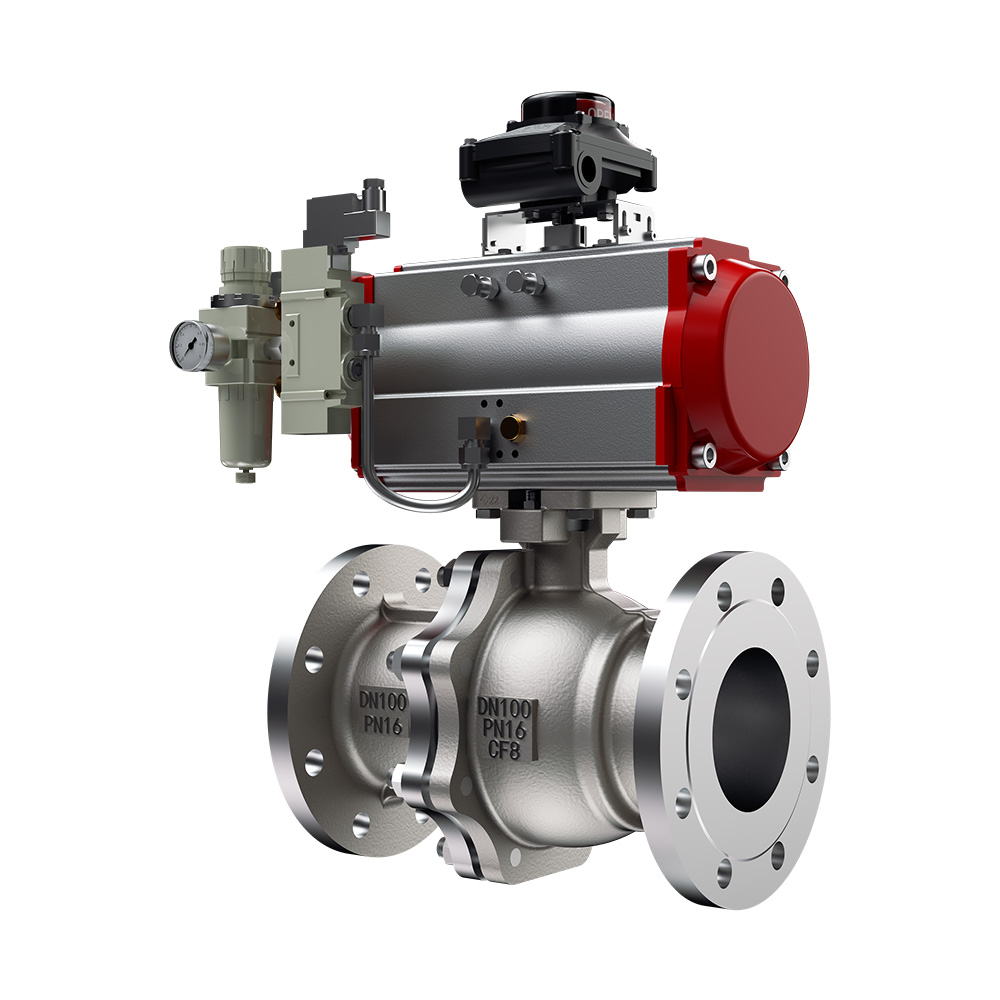

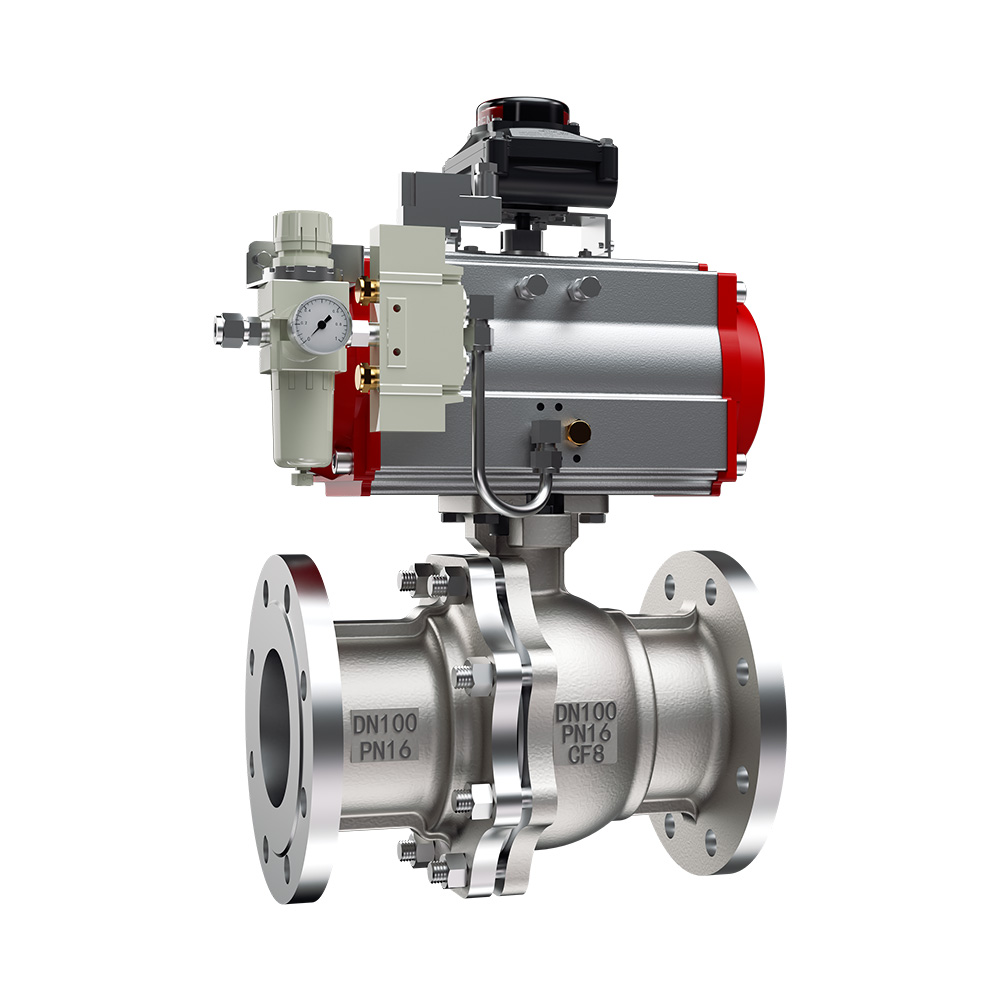

The GYR-52300 floating ball valve features reliable sealing, a simple structure, and convenient maintenance. The sealing surface and spherical surface are often in a closed state, preventing the valve from being eroded by the medium. It’s convenient to operate and maintain, suitable for general working media such as water, solvents, acids, and natural gas, and also suitable for harsh working conditions such as oxygen, hydrogen peroxide, methane, and ethylene. It has been widely used in various industries.
Valve Structure: Straight Through
Valve Specification: ANSI Class 150, 300, 600、JB1.6, 4.0, 6.4 Mpa
Pipe Line Connection: Flange、Wafer
Flow Characteristic: Quick Open
Leakage: CLASS IV (Standard, Metal Seat)、CLASS V, VI (Optional, Soft Seat)
Flow Direction: Standard
Actuator: Manual、Electric、Pneumatic
