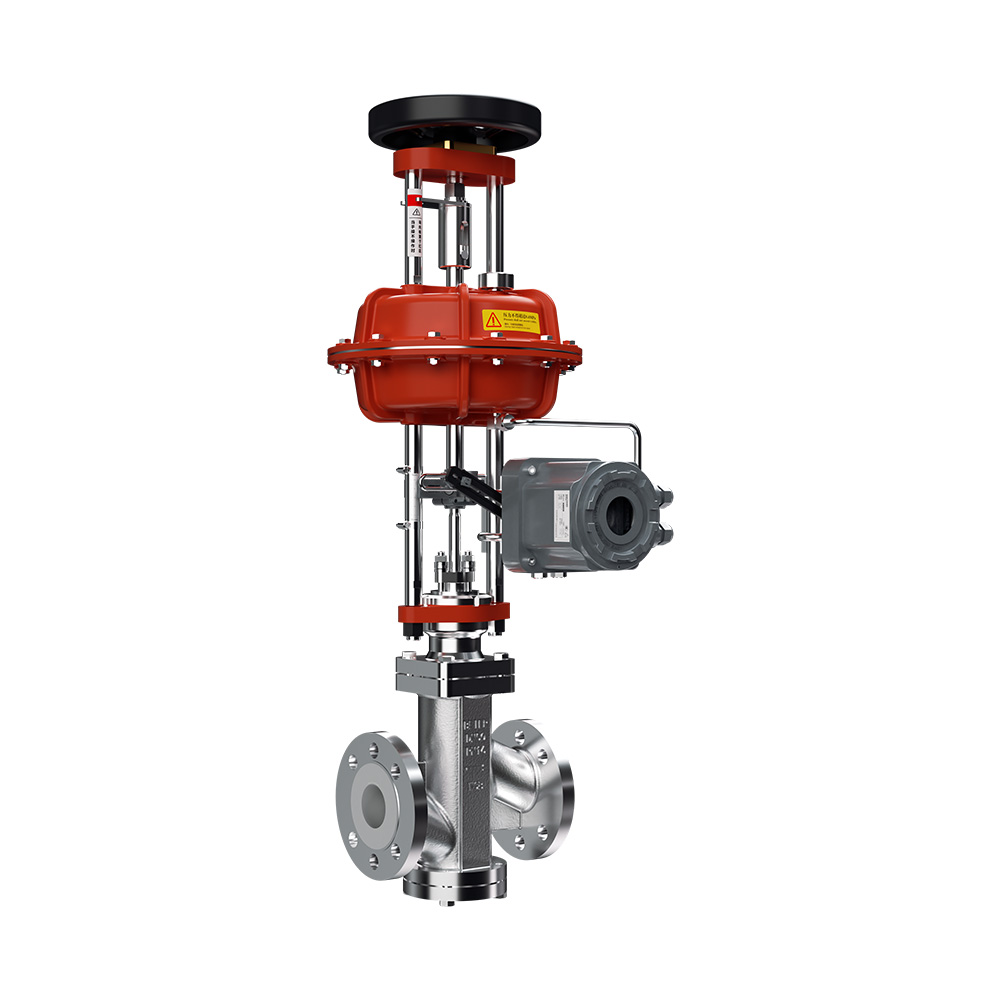

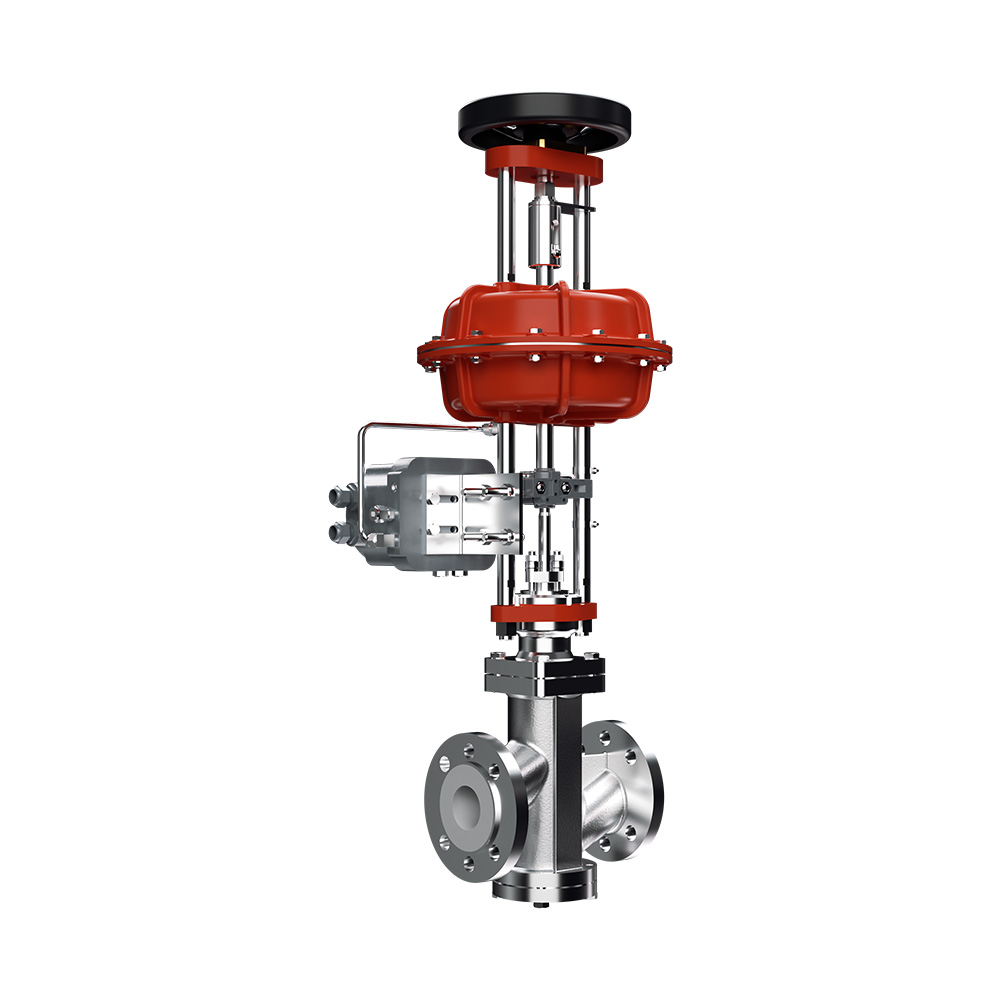

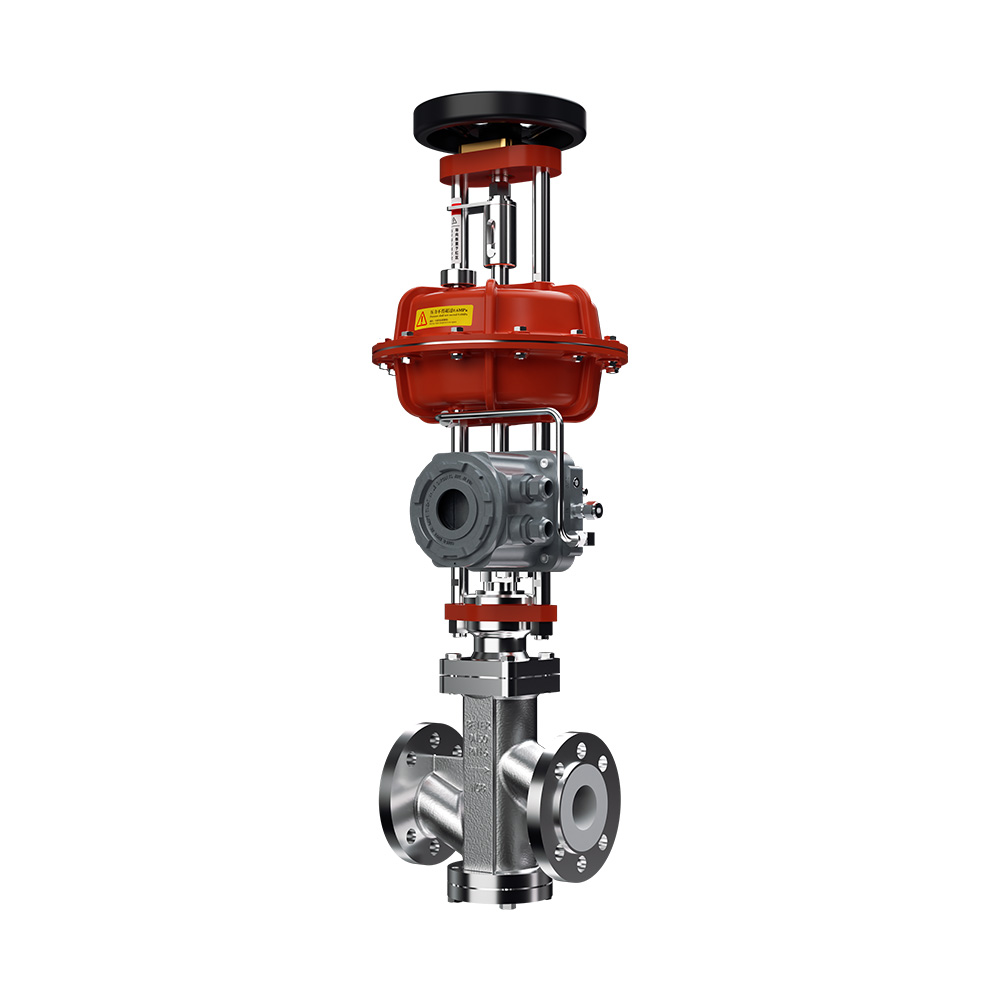

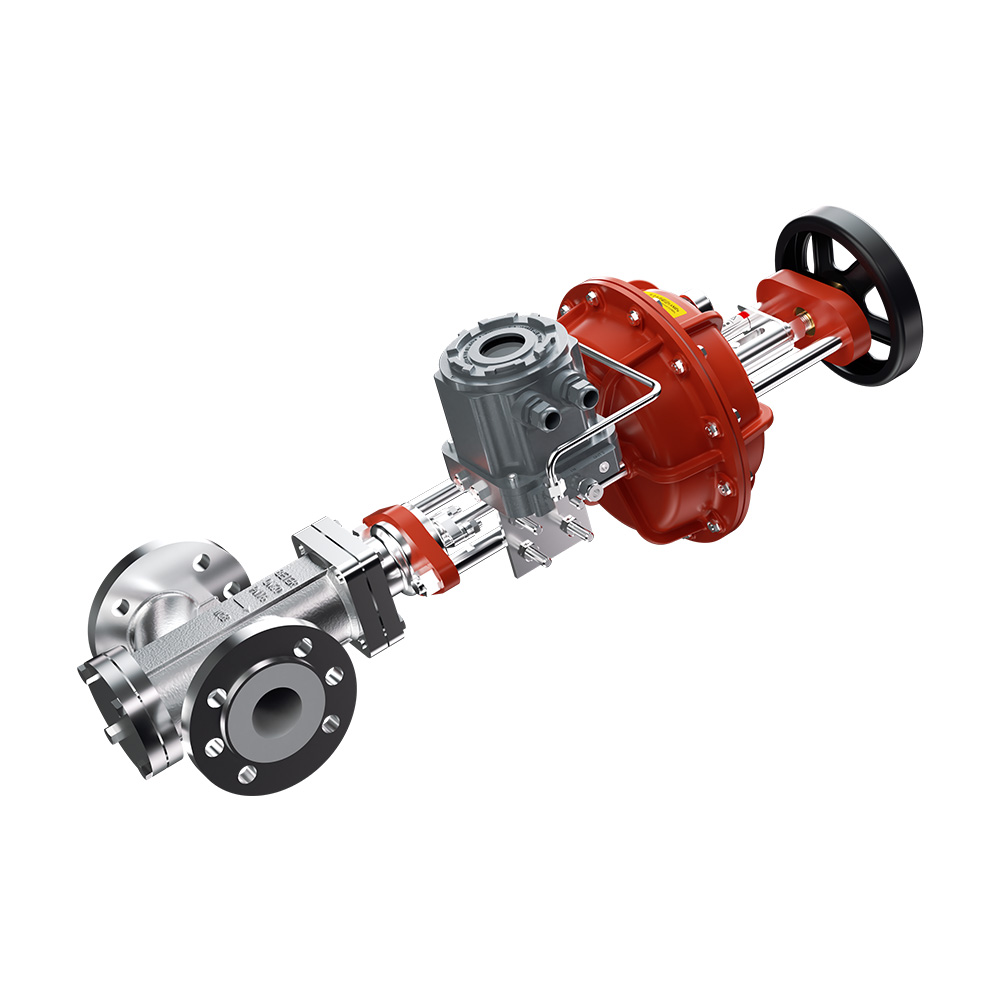

The valve body and trim of the L-21241C series are fully lined with fluorine, which effectively protects the mental material from corrosive fluids. The inner cavity of the metal valve body is processed in a toothed manner, which enables the lining material to connect with the metal, prolonging the service life and enhancing the performance of the lining material. The stem is sealed by a combination of RTFE bellows and “V” type PTFE packing to eliminate external leakage. The unbalanced fully fluorine-lined global valve is applicable for the use of highly corrosive media under low pressure and normal temperature conditions.
Control valve parameter description:
| Trim: | Unbalance、Lining seat、Lining plug |
| Body: | Straight Through |
| Bonnet: | Bellows |
| Temperature Range: | -45 °C~150°C |
| Stem Sealing: | Bellows + Standard |
| Leakage: | CLASS VI (Optional, Soft Seat) |
| Flow Characteristic: | Equal%、Linear |
| Pipe Line Connection: | Flange |
| Range Ability: | 50:1 |
