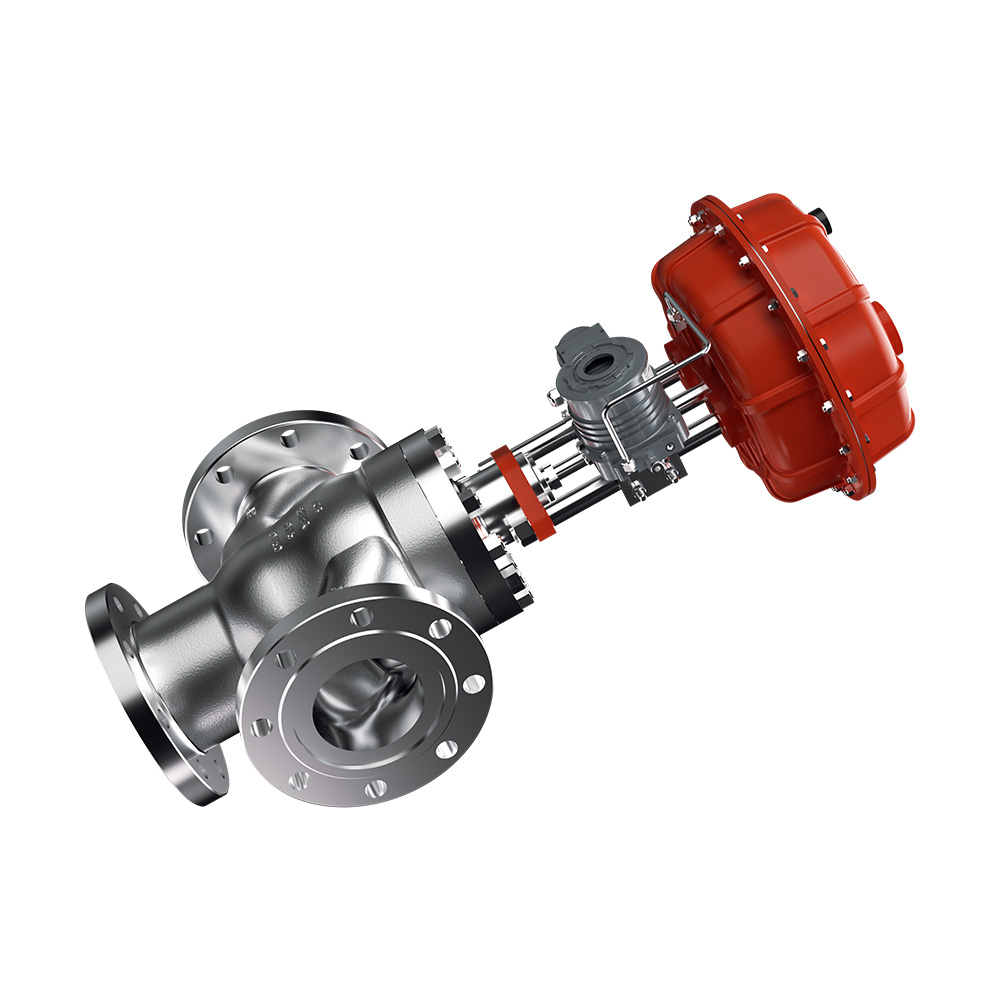

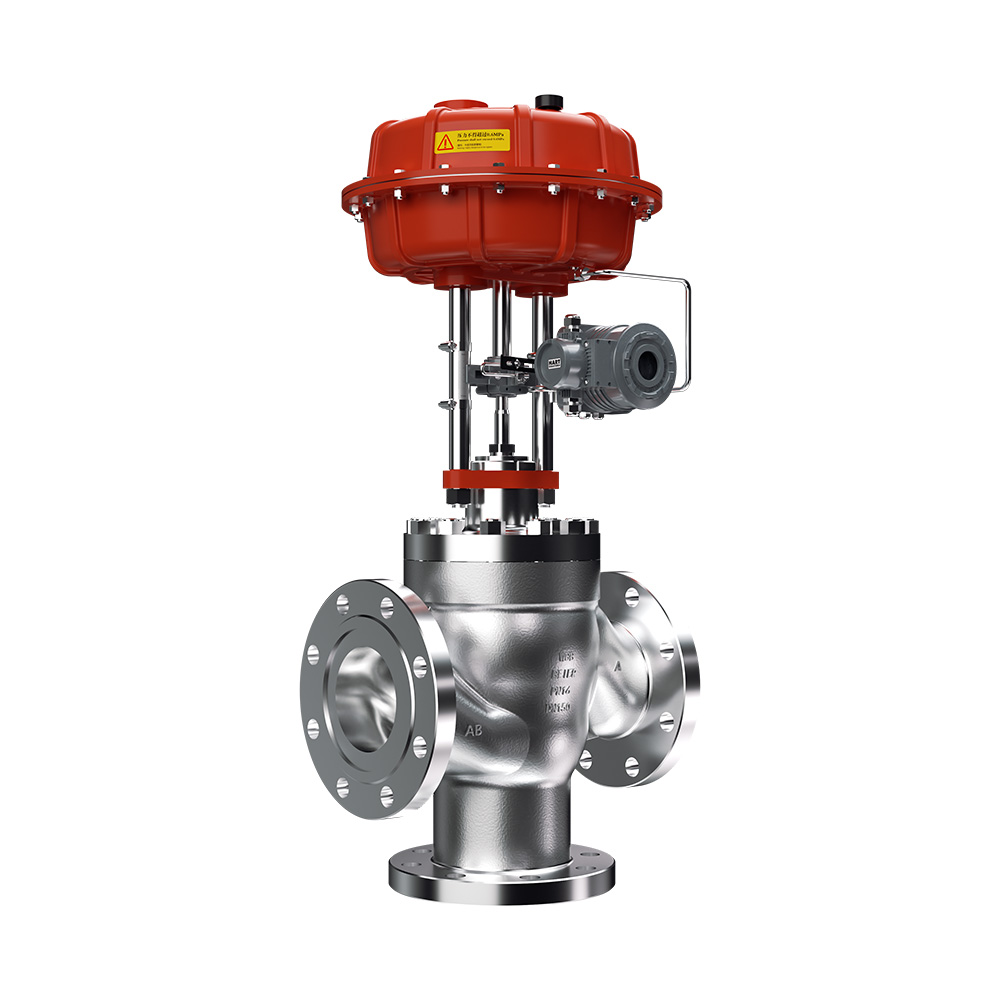

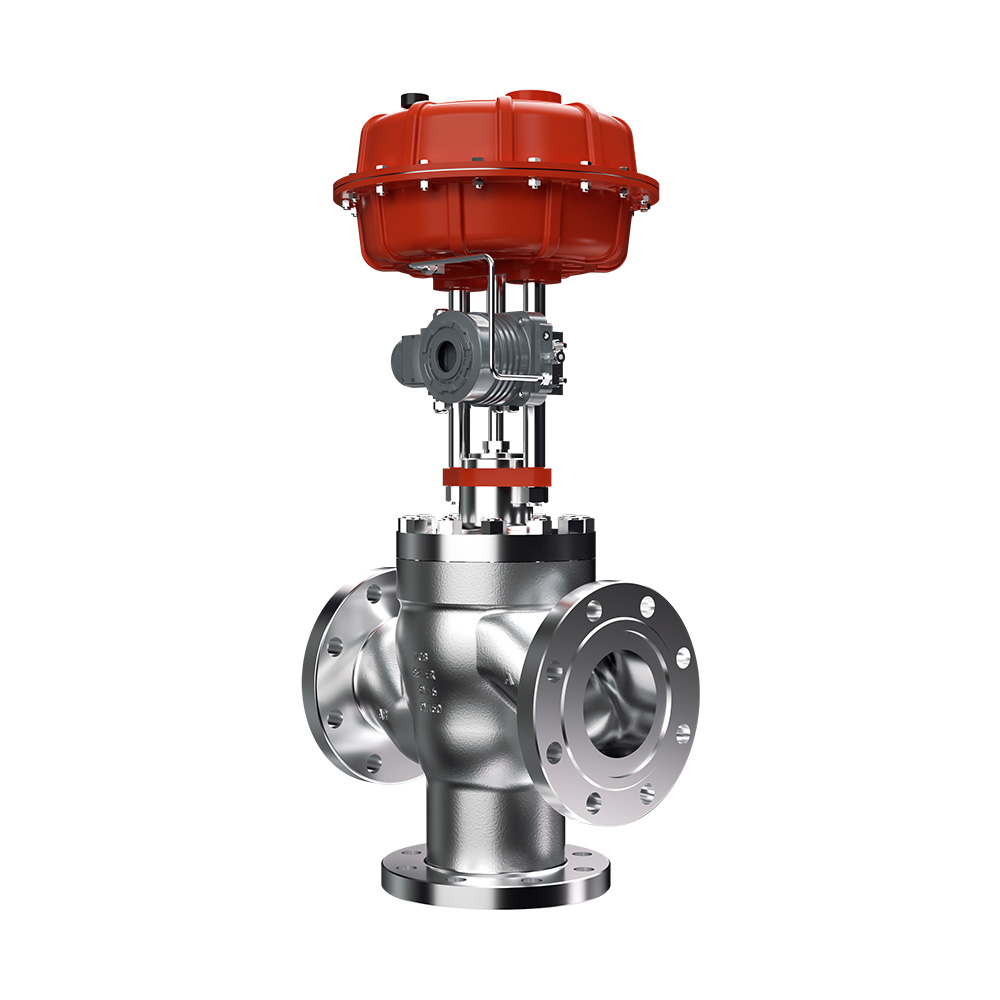

The L-23100 three-way control valve which features double trim and seat-guided structure provides general converging (flow-mixing) / diverging (flow-splitting) service. It regulates and controls the gathering and separation of media for several flow paths. For instance two flow paths in one flow path out is called a three-way converging conversely one flow path in two flow paths out is called a three-way diverging. It is optional with both unbalanced double seat trim and balanced trim which can effectively reduce the medium pressure drop caused by the unbalanced force. By changing the area of the throttling surface the adjustment or cut-off function of the flow can be controlled and special valve cage components such as noise reduction and cavitation prevention can also be used according to the working conditions. (For specific internal parts please refer to the relevant inner components of the control valves)
Control valve parameter description:
| Trim: | Double Seat、Seat Guided Trim |
| Body: | Three Way |
| Bonnet: | Standard Through、Steam、Cryogenic |
| Temperature Range: | -196°C~570°C |
| Stem Sealing: | Standard、Graphite、Bellows |
| Leakage: | CLASS IV (Standard with metal seal) |
| Flow Characteristic: | Equal%、Linear |
| Pipe Line Connection: | Flange、Welding |
| Range Ability: | 50:1 |
